Onyx Explorer is an open source, easy-to-use interface to analyze, interact and inspect transactions on EVM (Ethereum Virtual Machine) blockchains. L2, rollups, private chains, forks and Ethereum itself.

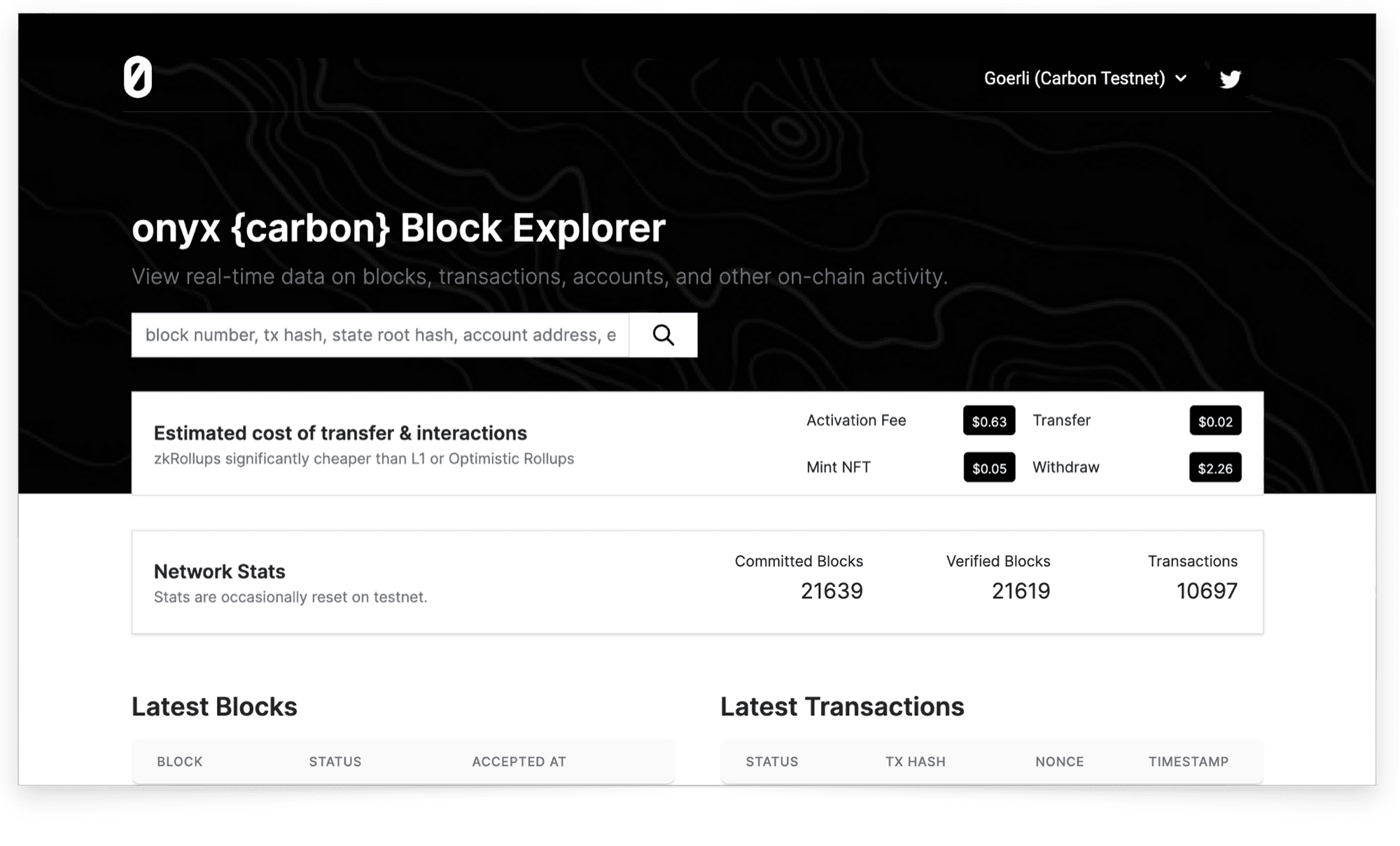

Onyx Explorer running on Onyx Carbon (testnet)

The ethos of blockchain technology is based in trust backed by verifiable proofs. While there are commercial solutions available such as Etherscan-- commercial solutions aren't open source or independently verifiable. As chains are increasingly more private and abstracted from mainnet there is an increased need for transparency in validation and transaction analysis.

General guidelines

The NextJS application requires an EVM compatible JSON-RPC API connection and environmental configuration. Example:

$ export JSONRPC=https://path.to.rpc
$ export PORT=43512
$ export COIN=ONX
$ export NETWORK=ONXCARBON
  • Database Storage 2TB SSD
  • RPC support for 200 req/sec to index against volume
  • Parity pending transaction support (RPC)
  • All core RPC Methods

eth_blockNumber
eth_getTransactionByHash
eth_getTransactionByBlockHashAndIndex
eth_call
eth_getBlockByNumber
eth_getBlockByHash
eth_getTransactionByBlockNumberAndIndex
eth_getBalance
eth_getLogs
eth_getCode
eth_getTransactionReceipt
eth_getUncleByBlockHashAndIndex

Features

  • API-First: Driven by GraphQL API designed to extend and support modularity.
  • Real time: Transactions and other activity is logged in real time.
  • EVM Compatible: Supports Ethereum, EVM Compatible chains, L2, private chains and rollups.
  • Token support: Support for ERC20, ERC721 & ERC1155 tokens.
  • Human readable views: Contract methods are decoded to provide additional information within the UI.
  • Smart contract support: View, verify and interact with Solidity based smart contracts.
  • Fast: Go-lang based microservices designed for performance and scalability.
  • Open source: License MIT / CC0

Forward

We're committed to enhancing the explorer from a beta to full public release with full data export and full documentation. Guidelines driven by Ethprize Foundation.

Onward!
